When an engine starts losing power, consuming excessive oil, or emitting blue smoke from the exhaust, it’s a clear sign that the piston rings are worn and the cylinders may need a good honing (also known as refinishing or light grinding). This work is essential if you want to bring your engine back to life without having to do a complete and expensive overhaul.

🚗 What are Engine Rings?

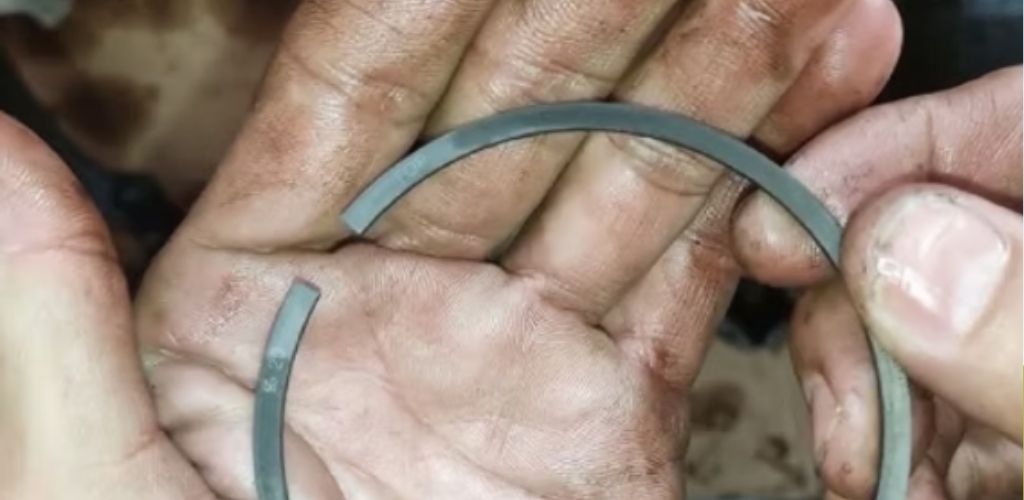

Piston rings are metal parts that are placed around the pistons. Their function is:

• Seal the engine compression.
• Prevent oil from rising into the combustion chamber.
• Transfer heat from the piston to the cylinder walls.

When these rings wear out, the engine loses power, consumes oil, and produces smoke.

🔥 What is Cylinder Growling?

Burnishing or honing is a fine sanding process performed on the cylinder walls using a tool called a “burnisher”. Its purpose is:

• Remove marks or imperfections left by wear and tear.
• Leave a cross-shaped finish that facilitates the seating of the new rims.
• Ensure proper lubrication and sealing.

🧰 Basic Tools You Will Need:

• Set of wrenches and sockets.
• Piston extractor.
• Micrometer and caliper.
• Cylinder hone.
• New set of rims (according to manufacturer’s specifications).
• Assembly oil.
• Torque wrench.

💡 Step by Step: Changing Rings and Grinding the Cylinder

1️⃣ Remove the Engine

• Remove the cylinder head, crankcase, and connecting rods.
• Carefully remove the pistons.

2️⃣ Remove the Old Rims

• Remove the rings with a special tool or very carefully by hand.
• Clean the piston completely.

3️⃣ Measure the Cylinder

• Use the micrometer to check the cylinder for wear.
• If the measurement is excessive, you will need to correct it, not just burnish it.

4️⃣ Growl the Cylinder

• Place the burnisher on the drill and apply oil.
• Make uniform movements, creating a cross pattern on the walls.
• Clean the entire cylinder with solvent and compressed air.

5️⃣ Install the New Rims

• Check the gap between the rims before mounting them.
• Place the rings in the correct order, according to the brand.
• Lubricate and carefully reinstall the pistons.

6️⃣ Assemble the Engine

• Assemble everything in reverse order.
• Tighten each screw to the recommended torque.
• Change the oil and start the engine to check.

🧠 Mini Workshop Tips:

✔️ Don’t reuse old hoops even if they “look good”.

✔️ Always clean the piston ring grooves thoroughly.

✔️ The growling should be even and with a cross pattern for better settling.

✔️ Check the manual to find out the exact measurement of the light in the rings.

✔️ After the change, perform a gradual break-in period without straining the engine for the first 500 km.

✅ Conclusion: Replacing piston rings and reboring cylinders is one of those jobs that many mechanics consider “workshop work,” but if you have the tools and patience, it’s entirely possible to do it yourself. With these tips and clear steps, you can restore your engine’s power and life without spending a fortune!
